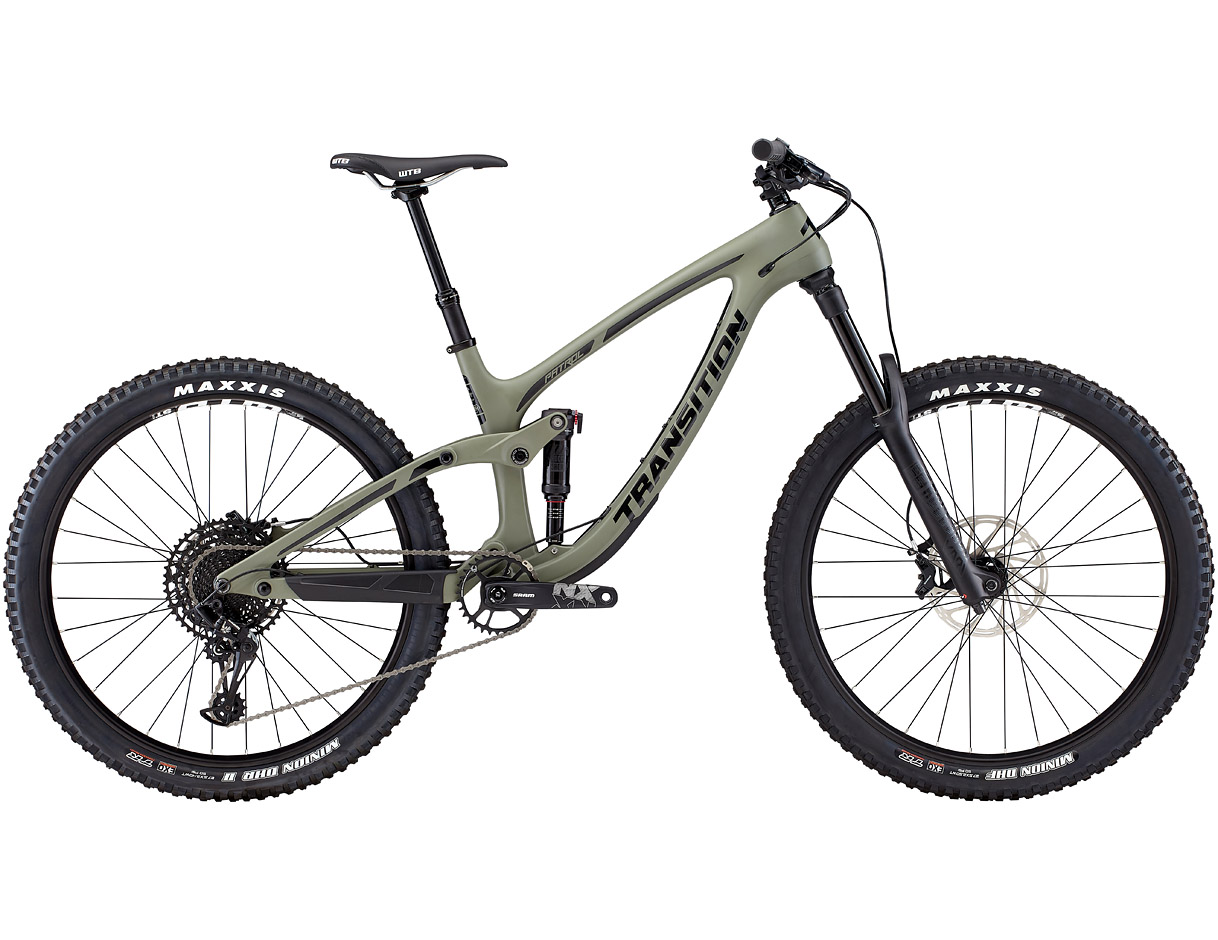

Patrol Carbon NX Kit


希望小売価格 : ¥525,000-(税別)
適応ホイールサイズ : 27.5インチ

Size : S / M / L / XL
Frame : Patrol Carbon 160mm Rear / 170 Front
Color : Sagebrush Grey / TR Blue
Rear Shock : Fox DPX2 Performance Elite
Front Fork : Rockshox Yari Charger Damper 170mm
Headset : FSA No.57E
Stem : Raceface Aeffect R (40mm)
Handlebar : Raceface Chester 35
Grips : Velo VLG-1812D2
Saddle : WTB Silverado Comp
Seatpost : KS Lev Integra
Brakes : Sram Guide T
Rotors : Sram Centerline (200 / 180mm)
Shifter : Sram NX Eagle
Derailleur : Sram NX Eagle
Cassette : Sram PG1230 (10-50t)
Chain : Sram NX Eagle
Crank : Sram NX  Eagle Dub
Wheelset : WTB STi29 / Novatec D971SB / D462 SB
Tire / Front : Maxxis Minion DHF Dual WT (27.5×2.5)
Tire / Rear : Maxxis Minion DHRⅡ Dual WT (27.5×2.4)









Frame Size : S / M / L / XL
Reach : 425 / 450 / 475 / 500
Stack :  596 / 605 / 614 / 623
Effective Toptube Length : 555 /583 / 611 / 640
Seat Tube Length : 360 / 400 / 440 / 490
Effective Seattube Angle : 77.8 / 77.1 / 76.6 / 76.1
Headtube Length : 100 / 110 / 120 / 130
Headtube Angle : 64.0 / 64.0 / 64.0 / 64.0
Chainstay Length : 430 / 430 / 430 / 430
Wheelbase : 1179 / 1209 / 1238/ 1268
Bottom Bracket Drop : 15 / 15 / 15 / 15
Estimated B.B. Height : 340 / 340 / 340 / 340
Standover : 680 / 685 / 695 / 710
Fork Offset : 37 / 37 / 37 / 37
Ineffective Toptube Length : 1442 / 1523 / 1604 / 1685
Downtube Angle : 60 / 60 / 60 / 60
Stance : 680 / 680 / 680 / 680
Rocker Eye To Eye : 185 / 185 / 185 / 185

Sizing Chart
